 | Alpha 5w GNSS |
Alpha 5w full-galaxy RTK, built-in fully compatible 5W long-range radio, more compatible with the global market, whether as a rover or base station can easily finish the job.
● 90° IMU
● Calibration-free
● Built-in 5 watts radio
● Protocol compatible
5W Radio
—
Built-in 5W integrated transceiver and fully compatible radio with cover range up to 12km(ideal environment) and 5km(in urban environment). Supports the full frequency band of 410-470MHz, is compatible with the market's mainstream RTK protocol, and is ompatible with 35W external radio.

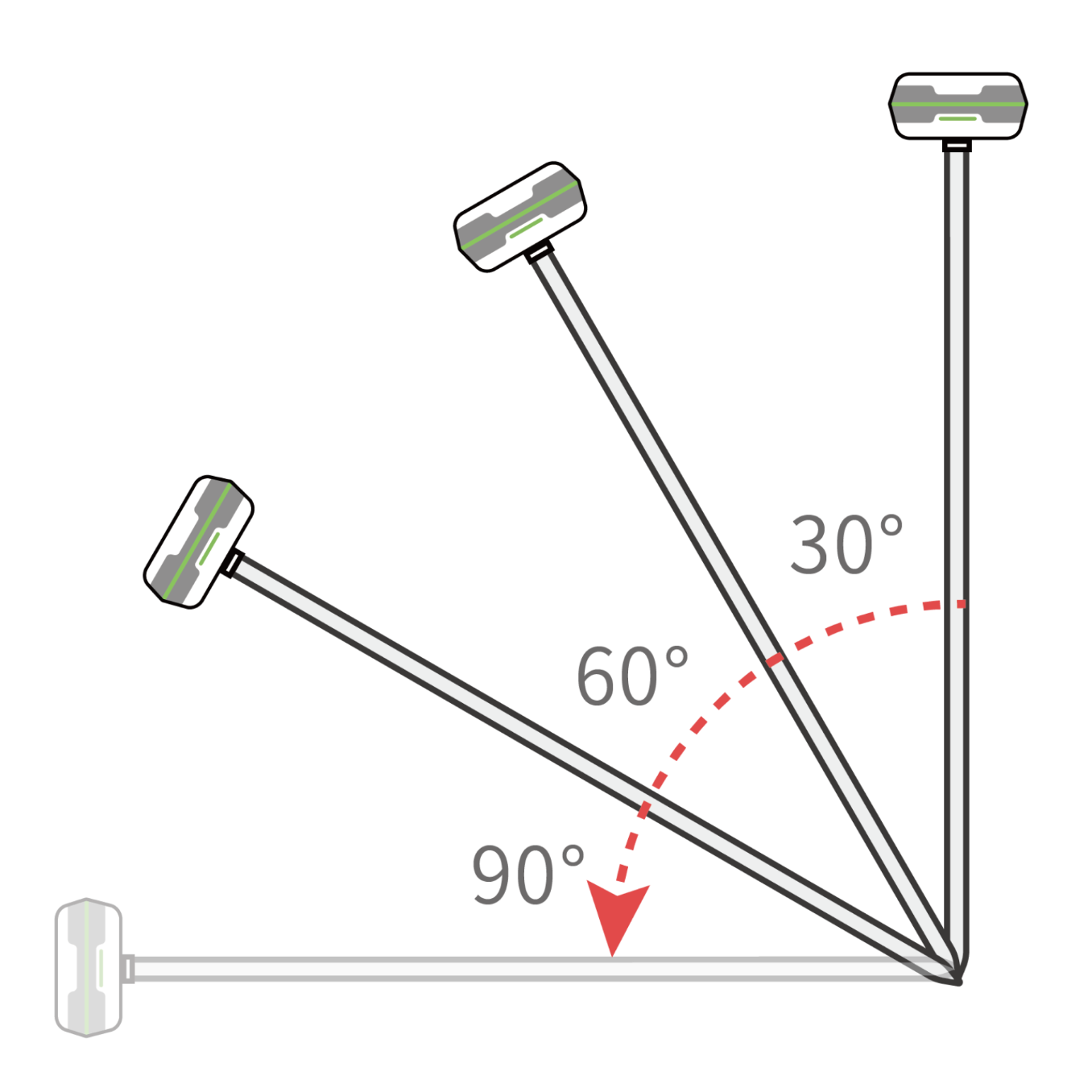

Inertial Navigation
—
Quick initialization, supports 60° tilted ground point measurement, and supports 90° horizontal point measurement. When satellite conditions are good, 120° aerial point measurement can be supported for a short period of time.
2CM 60°tilt
DiMap
—
DiMap has been greatly upgraded with various measurement modes that cater to users' needs. Users can view and check the data while the measuring program is under way. The DiMap, which offers services for RTK, is professional, intelligent, and user-friendly.

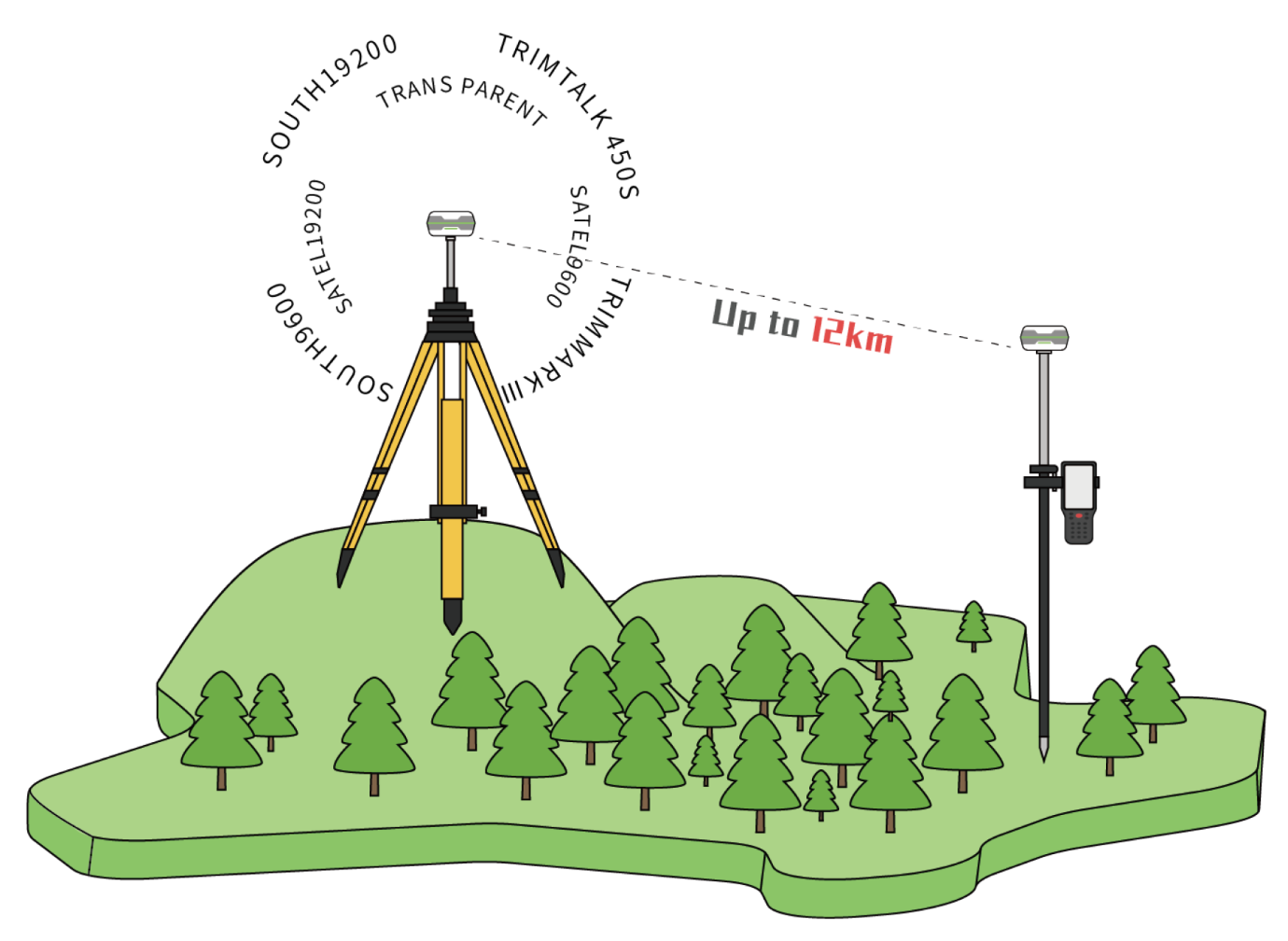

Long-cover-range
Built-in 5W Rx&Tx radio,
could cover range up to 12km
Long working time
Work over 25h with smart power supply in rover mode
Quick fixed
Quick and high-precision calculating based on the BDS
